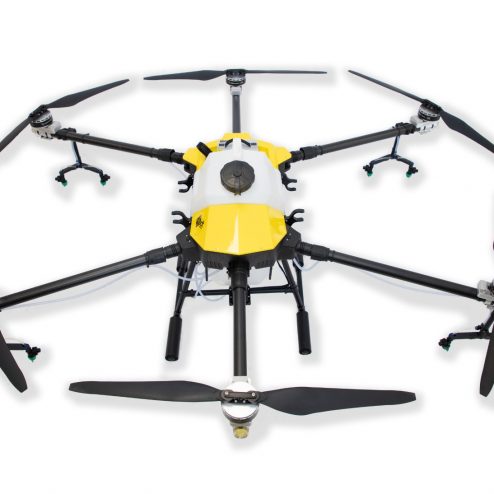

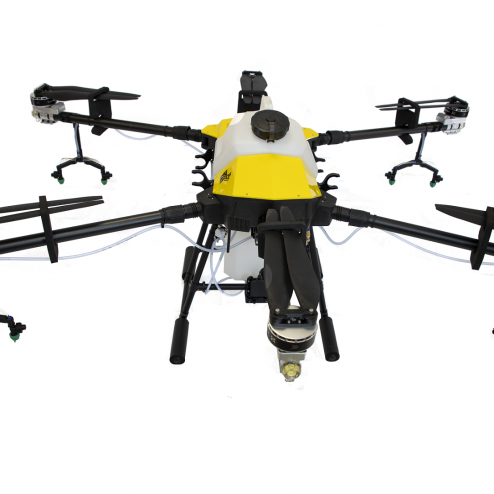

ADT Aquila S 30L-6M

30 liter tank and 4 double nozzles

ADT Aquila S 30L-6M is an agricultural drone suitable for agriculture, fruit growing and viticulture, designed to increase efficiency and crop management, with a 30 liter tank and 4 double nozzles.

15125€+VAT

Purchase
See Specs
Safety

Terrain tracking radar
Obstacle avoidance sensor

Camera

Fixed camera with 2 LED reflectors
Live image transmission and display on the phone screen

Intelligent spraying

Flow-meter
Tank drain sensor

Autonomous-spraying

Trajectory marking device
Ground Station application / software + radio telemetry

Continuous spraying

Additional batteries
Multiple battery adapter to charger

Full Drone details and Specs

Specifications

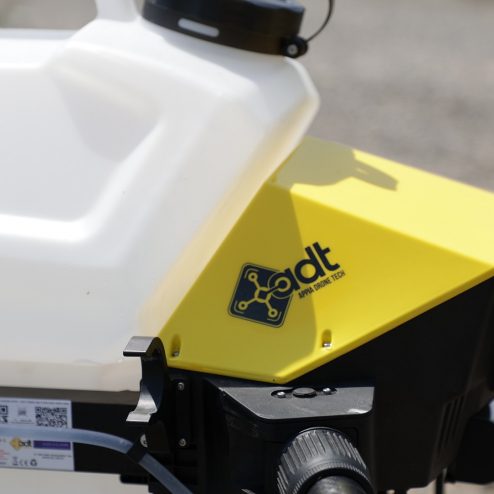

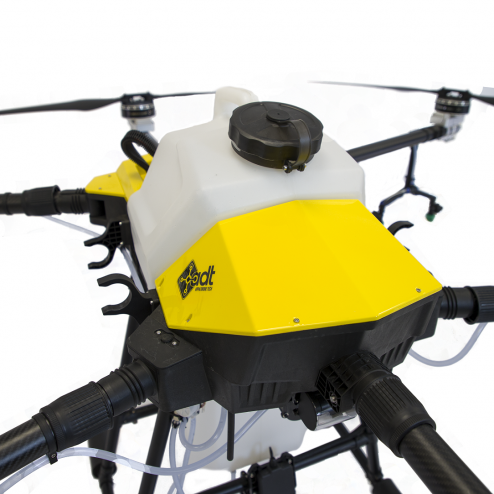

Liquid tank volume 30 liter
Net weight 19 kg
Takeoff weight 25 kg
Maximum take-off weight 55 kg
Flight time 10-20 minutes
Flight radius 0-1000 m
Flying altitude 0-20 m
Flying speed 0-10 m/s
Operating temperature -10° C to 70° C
Humidity 0-90%
Spray speed 0-8 m/s

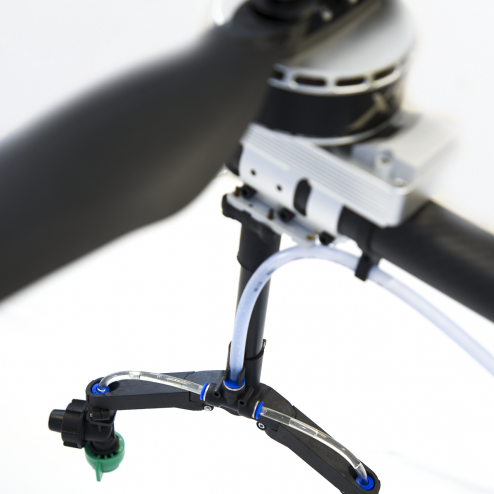

Spray width / Number of nozzles 5-7 m / 4 double nozzles
Spray flow 1.5-3.5 l / min
Spraying efficiency 2400-3350 m²/min
Descending air flow 4-15 m/s
Wind resistance 10 m/s

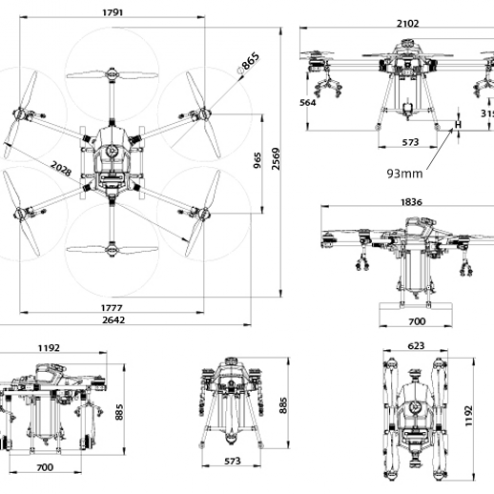

Dimensions
Extended 1.79×1.83×0.88 m

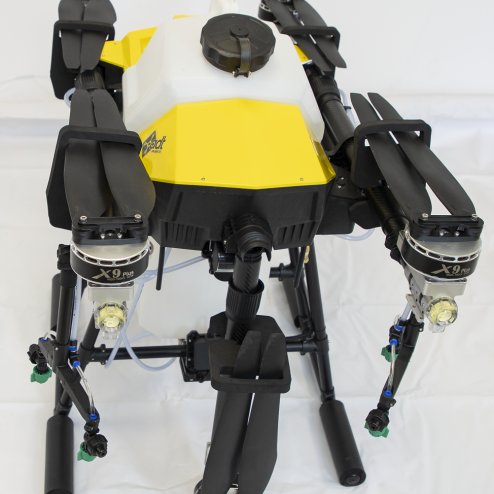

Folded 1.19×0.62×0.88 m
Propulsion System
Motor Brushless with permanent magnets
Water resistant by IPX7 standard
FOC – PMSM (Field Oriented Control based Permanent Magnet Synchronous Motor)
Propeller material Carbon fiber
ESC 490Hz (integrated in the motor)
Flight controller Dual CPU
Triple IMU
Dual barometer

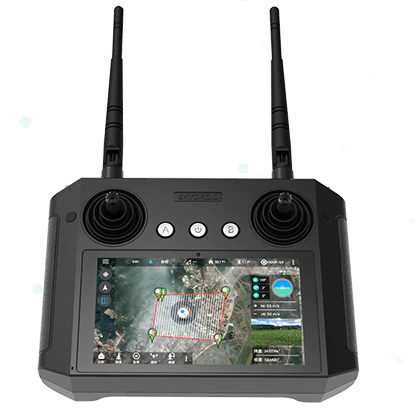

Remote controller 12 channels + 5 PWM channels

Integrated Android system with fHD 5,5“ high luminosity screen (1000nits)

slot for 4G SIM card, 10.000mah integrated battery, weight 530g

Control application Android application
Compatible with Google Maps and KML file import

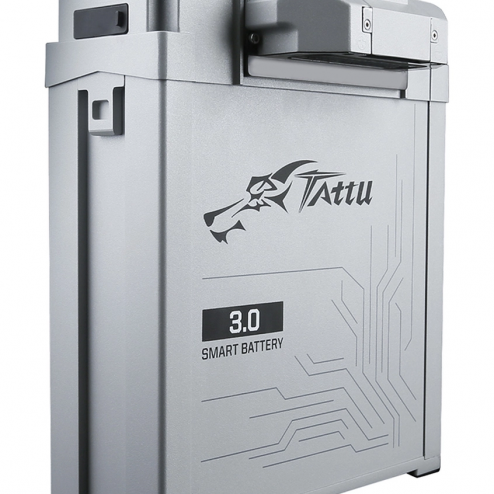

Battery / Quantity 14 cells, capacity 28000mAh 1 piece

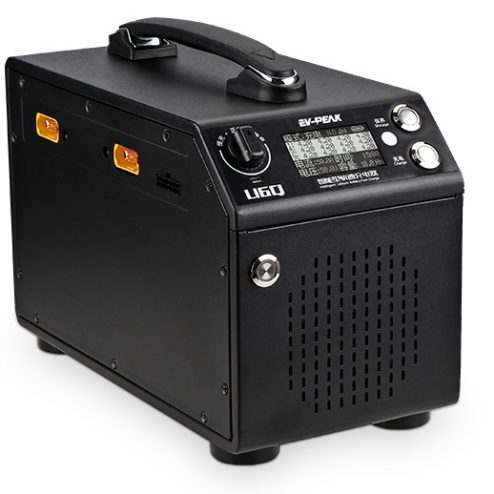

Battery charger 3000W quick/smart charger 230V
Charging time 25 min / 1 battery
Other Info
Certification CE
Origin EU
Warranty 3 years on drone / 1 year on batteries
Service and post-warranty Provided – in Romania
